Product Summary

ADUC845BSZ62-5 is a 24-/16-Bit ADCs with embedded 62 kB flash and single-cycle MCU. Applications of the ADUC845BSZ62-5 include: Multichannel sensor monitoring, ndustrial/environmental instrumentation Weigh scales, pressure sensors, temperature monitoring, Portable instrumentation, battery-powered systems and Data logging, precision system monitoring.

Parametrics

ADUC845BSZ62-5 absolute maximum ratings: (1) AVDD to AGND: -0.3 to +7V; (2) AVDD to DGND: -0.3 to +7V; (3) DVDD to DGND: -0.3 to +7V; (4) DVDD to DGND: -0.3 to +7V; (5) AGND to DGND: -0.3 to +7V; (6) Analog Input Voltage to AGND: -0.3V to AVDD +0.3V; (7) Reference Input Voltage to AGND: -0.3V to AVDD +0.3V; (8) AIN/REFIN Current (Indefinite) : 30mA; (9) Digital Input Voltage to DGND: -03V to DVDD +0.3V; (10) Digital Output Voltage to DGND: -03V to DVDD +0.3V; (11) Operating Temperature Range: -40 to +125°C; (12) Storage Temperature Range: -65 to +150°C.

Features

ADUC845BSZ62-5 features: (1) High resolution; (2) Two independent 24-bit ADCs on the ADuC845; (3) Single 24-bit ADC on the ADuC847 and single 16-bit ADC on the ADuC848; (4) Up to 10 ADC input channels on all parts; (5) 24-bit no missing codes; (6) 22-bit rms (19.5 bit p-p) effective resolution; (7) ffset drift 10 nV/°C, gain drift 0.5 ppm/°C C chop enabled.

Diagrams

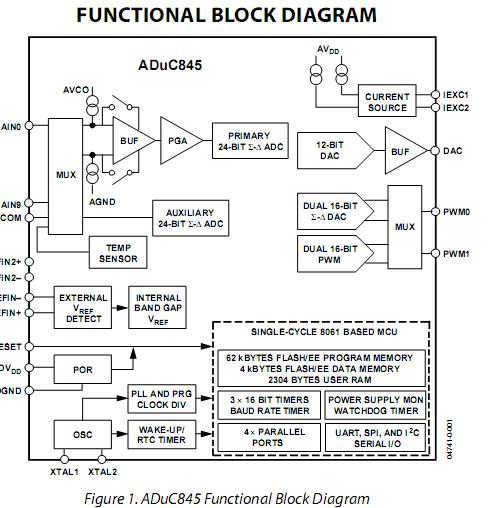

ADUC845BSZ62-5 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADUC845BSZ62-5
ADUC845BSZ62-5


IC FLASH MCU W/24BIT ADC 52-MQFP

Data Sheet

0-1: $13.33
1-10: $12.33
10-100: $10.53
100-250: $9.66
250-500: $9.20
500-1000: $8.88
ADUC845BSZ62-5-RL
ADUC845BSZ62-5-RL


IC FLASH MCU W/24BIT ADC 52MQFP

Data Sheet

0-800: $8.88
