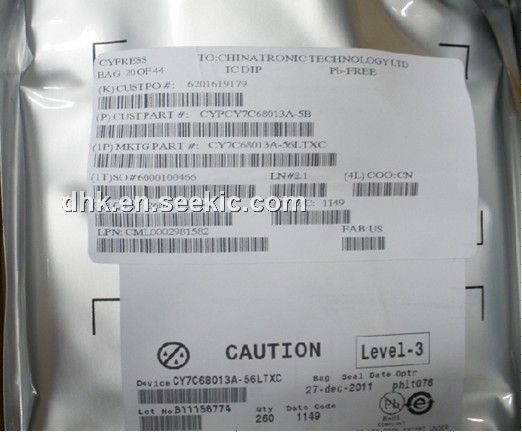

CY7C68013A-56LTXC

controller, 5.25V, 300mW, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~3.80 / piece [Get Latest Price]

PartNumber:: CY7C68013A-56LTXC

Brand:: Cypress Semiconductor - Cypress | Pack: QFN | D/C: 10+

Availability:: Supply Ability: 200/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Tina's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-15

From Other Seller

Part Number:CY7C68013A-56LTXC
US $3.20 - 3.80
Quantity:

piece

Product Summary

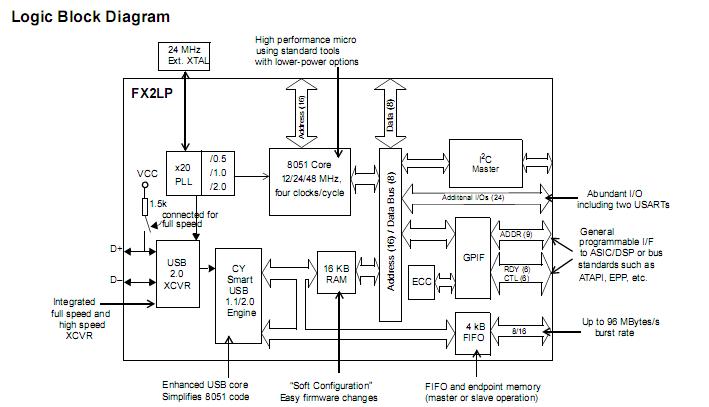

The CY7C68013A-56LTXC is a low power version of the EZ-USB FX2, version of the EZ-USB FX2 integrated, low power USB 2.0 microcontroller. Applications of the CY7C68013A-56LTXC include: Portable video recorder, MPEG/TV conversion, DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players and Networking.

Parametrics

CY7C68013A-56LTXC absolute maximum ratings: (1) Storage Temperature: -65 to +150°C; (2) Ambient Temperature with Power Supplied (Commercial) : 0 to +70°C; (3) Ambient Temperature with Power Supplied (Industrial) : -40 to +105°C; (4) Supply Voltage to Ground Potential: -0.5 to +4.0V; (5) DC Input Voltage to Any Input Pin: 5.25V; (6) DC Voltage Applied to Outputs in High Z State: -0.5 to Vcc +0.5V; (7) Power Dissipation: 300mW; (8) Static Discharge Voltage: >2000V; (9) Max Output Current, per I/O port: 10mA; (10) Max Output Current, all five I/O ports (128- and 100-pin packages) : 10mA.

Features

CY7C68013A-56LTXC features: (1) USB 2.0 USB IF High Speed Certified (TID # 40460272) ; (2) Single Chip Integrated USB 2.0 Transceiver, Smart SIE, and Enhanced 8051 Microprocessor; (3) Fit, Form, and Function Compatible with the FX2; (4) Ultra Low Power: Icc No More than 85 mA in any Mode; (5) 16 KBytes of On-Chip Code/Data RAM; (6) Four Programmable BULK, INTERRUPT, and ISOCHRONOUS Endpoints; (7) Additional Programmable (BULK/INTERRUPT) 64 Byte Endpoint; (8) 8-Bit or 16-Bit External Data Interface; (9) Smart Media Standard ECC Generation; (10) Available in Commercial and Industrial Temperature Grade (all packages except VFBGA) .
