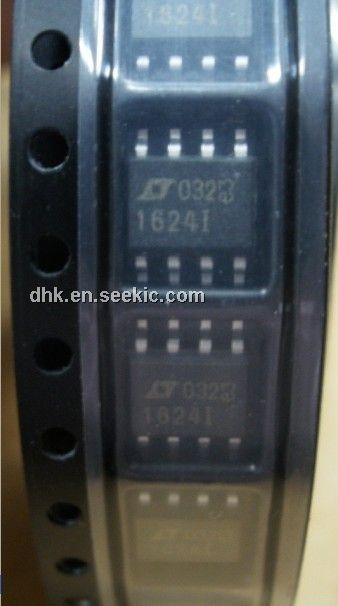

LTC1624IS8#TRPBF

regulator controller, 42V, 2A,SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.55~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.80 / Piece
10 ~ 50 :	1.68 / Piece
50 ~ 100 :	1.55 / Piece

PartNumber:: LTC1624IS8#TRPBF

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Tina's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-17

From Other Seller

Part Number:LTC1624IS8#TRPBF
US $1.55 - 1.80
Quantity:

piece

Product Summary

LTC1624IS8#TRPBF is a current mode switching regulator controller that drives an external N-channel power MOSFET using a fixed frequency architecture. The LTC1624IS8#TRPBF can be operated in all standard switching configurations including boost, step-down, inverting and SEPIC. Burst Mode operation provides high efficiency at low load currents. Applications of the LTC1624IS8#TRPBF include: Notebook and Palmtop Computers, PDAs, Cellular Telephones and Wireless Modems, Battery-Operated Digital Devices, DC Power Distribution Systems and Battery Chargers.

Parametrics

LTC1624IS8#TRPBF absolute maximum ratings: (1) Input Supply Voltage (VIN) : 36V to -0.3V; (2) Topside Driver Supply Voltage (BOOST) : 42V to -0.3V; (3) Switch Voltage (SW) : 36V to -0.6V; (4) Differential Boost Voltage (BOOST to SW) : 7.8V to -0.3V; (5) SENSE Voltage VIN < 15V: (VIN +0.3V) to -0.3V, VIN ≥(VIN) +0.3V) to (VIN -15V) ; (6) ITH/RUN, VFB Voltages: 2.7V to -0.3V; (7) Peak Driver Output Current < 10μs (TG) : 2A; (8) Operating Temperature Range: -40 to 85°C; (9) Junction Temperature: 125°C; (10) Storage Temperature Range: -65 to +150°C; (11) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LTC1624IS8#TRPBF features: (1) N-Channel MOSFET Drive; (2) Implements Boost, Step-Down, SEPIC and Inverting Regulators; (3) Wide VIN Range: 3.5V to 36V Operation; (4) Wide V Range: 1.19V to 30V in Step-Down Configuration; (5) ±1% 1.19V Reference; (6) Low Dropout Operation: 95% Duty Cycle; (7) Internal Diode for Bootstrapped Gate Drive; (8) Available in an 8-Lead SO Package.
