Product Summary

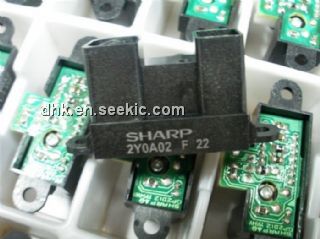

GP2Y0A02YK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit. The GP2Y0A02YK0F outputs the voltage corresponding to the detection distance. Applications of the GP2Y0A02YK0F include: Touch-less switch (Sanitary equipment, Control of illumination, etc. ) , Sensor for energy saving (ATM, Copier, Vending machine, Laptop computer, LCD monitor) and Amusement equipment (Robot, Arcade game machine) .

Parametrics

GP2Y0A02YK0F absolute maximum ratings: (1) Supply voltage Vcc: -0.3 to +7V; (2) Output terminal voltage Vo: -0.3 to Vcc +0.3V; (3) Operating temperature Topr: -10 to +60°C; (4) Storage temperature Tstg: -40 to +70°C.

Features

GP2Y0A02YK0F features: (1) Distance measuring range : 20 to 150cm; (2) Analog output type; (3) Package size : 29.5×13×21.6mm; (4) Consumption current : Typ. 33mA; (5) Supply voltage : 4.5 to 5.5V.

Diagrams

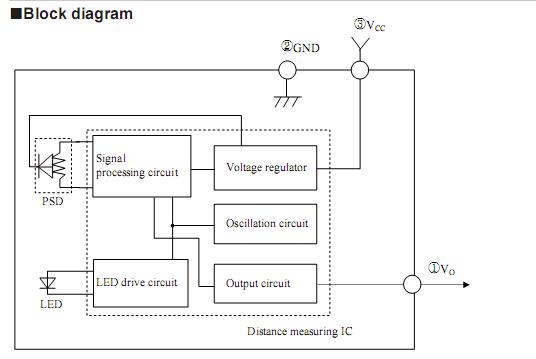

GP2Y0A02YK0F Block DiagramGP2Y0A02YK0F
