Product Summary

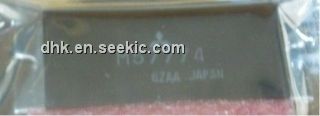

The M57774 is a FM mobile radio.

Parametrics

M57774 absolute maximum ratings: (1) Supply voltage Vcc: 17V; (2) Total current Icc: 7A; (3) Input power Pin (max) : 600mW (Vcc1≤12,5V, ZG=ZL=50Ω) ; (4) Output power Po (max) : 40W (ZG=ZL=50Ω) ; (5) Operation case temperature Tc (op) : -30 to 110°C; (6) Storage temperature Tstg: -40 to 110°C.

Diagrams

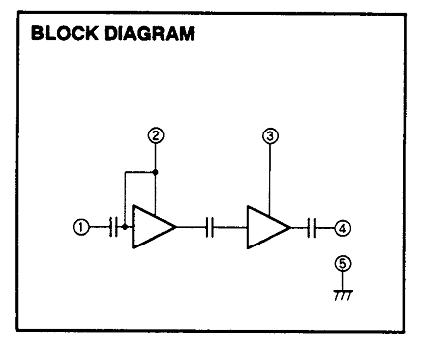

M57774 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M57774
M57774

Other


Data Sheet

Negotiable
