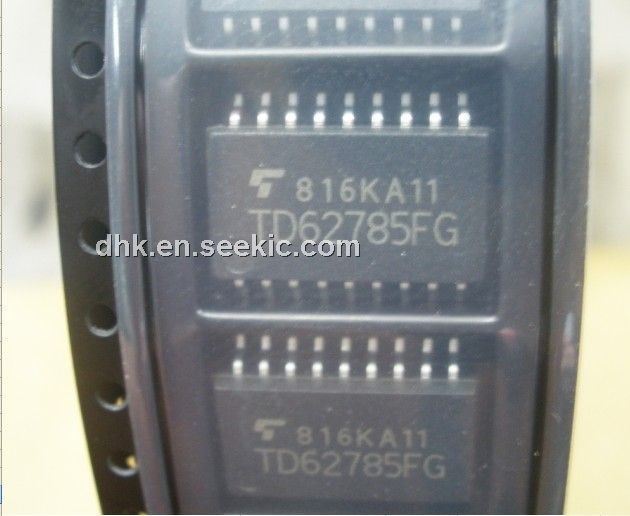

Product Summary

TD62785FG is an eight Channel NonInverting Source current transistor Array. The TD62785FG is specifically designed for multiplexed digit driving of eight digit commonanode LED and also can be employed as a source drivers for multiplexed LED displays using with the TD62381PG, TD62381FG at standard supply voltage, 5V. Applications of the TD62785FG include relay, hammer and lamp drivers.

Parametrics

TD62785FG absolute maximum ratings: (1) Supply Voltage Vcc: 7V; (2) Output Voltage Vout: Vcc; (3) Output Current Iout: -500mA/ch; (4) Input voltage Vin: -10mA; (5) Power Dissipation PD: 1.47W (PG) , 0.96W (FG) ; (6) Operating Temperature Topr: -40 to +85°C; (7) Storage Temperature Tstg: -55 to 150°C.

Features

TD62785FG features: (1) Low saturation voltage: VCE (sat) =1.35V max @IOUT=-500mA; (2) Output current (single output) IOUT=-500mA MIN; (3) Input pullup resistor RIN=5.6kΩ Typ. ; (4) Input pullup resistor RIN: 15kΩ typ; (5) Low level active inputs ; (6) Package TypePG: DIP18 pin; (7) Package TypeFG: SOP18 pin.

Diagrams

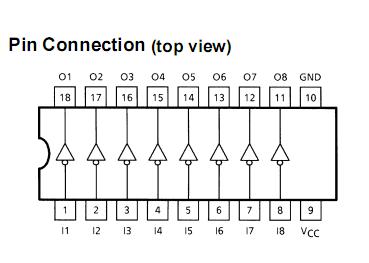

TD62785FG Pin Connection
