Product Summary

The ADP3050ARZ-5 is a current-mode monolithic buck (step-down) PWM switching regulator that contains a high current 1 A power switch and all control, logic, and protection functions. The ADP3050ARZ-5 uses a unique compensation scheme that allows the use of any type of output capacitor (tantalum, ceramic, electrolytic, OS-CON) . Applications of the ADP3050ARZ-5 include: Industrial Power Systems, PC Peripheral Power Systems, Preregulator for Linear Regulator Distributed Power Systems, Automotive Systems and Battery Chargers.

Parametrics

ADP3050ARZ-5 absolute maximum ratings: (1) IN Voltage: -0.3 to +30V (Steady State) , peak: -0.3 to 60V ( <100 ms) ; (2) BOOST Voltage, Steady State: -0.3 to 45V, =0.3 to +65V (Peak (<100 ms) ) ; (3) SD, BIAS Voltage: -0.3 V to IN + 0.3V; (4) FB Voltage: -0.3 to +8V; (5) COMP Voltage: -0.3 to IN +0.3V; (6) SWITCH Voltage: -0.3 to IN +0.3V; (7) Operating Ambient Temperature Range: -40 to +85°C; (8) Operating Junction Temperature Range: -40 to +125°C; (9) Storage Temperature Range: -65 to +150°C; (10) Lead Temperature Range (Soldering, 60 sec.) : 300°C.

Features

ADP3050ARZ-5 features: (1) Wide Input Voltage Range: 3.6V to 30V; (2) Adjustable and Fixed (3.3V, 5V) Output Options; (3) Integrated 1 A Power Switch; (4) Uses Small Surface-Mount Components; (5) Cycle-By-Cycle Current Limiting; (6) Peak Input Voltage (100ms) : 60V; (7) Thermally Enhanced 8-Lead SOIC Package; (8) Configurable as a Buck, Buck-Boost and SEPIC Regulator.

Diagrams

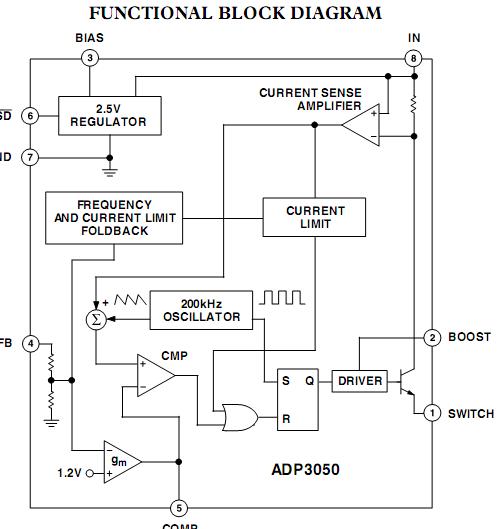

ADP3050ARZ-5 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADP3050ARZ-5
ADP3050ARZ-5

IC REG BUCK 5V 1A 8SOIC
Data Sheet
0-1: $2.74
1-10: $2.44
10-100: $2.00
100-250: $1.81
250-500: $1.62
500-1000: $1.37
1000-2500: $1.30
