Product Summary

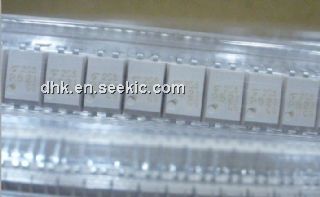

TLP521-1GB is a GaAs IRED and photo-transistor. The TLP521-1GB consists of a photo-transistor optically coupled to a gallium arsenide infraded emitting diode.
Parametrics
TLP521-1GB absolute maximum ratings: (1) forward current IF: 70mA; (2) Forward current debrating: -0.93 mA/°C (Ta≥50°C) ; (3) Pulse forward current, IFP: 1A (100μ pulse, 100pps) ; (4) Reverse voltage VR: 5V; (5) Junction Temperature Tj: 125°C: (6) Collector-emitter voltage VCEO: 55V; (7) Emitter-Collector Voltage VECO: 7V; (8) Operating temperature range Tstg: -55 to 125°C; (9) Operating temperature range Topr: -55 to 100°C; (10) Junction temperature: 125°C.
Features
TLP521-1GB absolute maximum ratings: (1) collector-emitter voltage: 55V (min) ; (2) current transfer ratio: 50% (min); (3) Isolation voltage: 2500Vrms (min) ; (4) UL recognized.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP521-1GB |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
TLP504A |
|
PHOTOCOUPLER DUAL TRANS-OUT 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP504A−2 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP504A(F) |
Toshiba |
Transistor Output Optocouplers TR HIGH Vceo (55V) |
Data Sheet |
|
|
||||||||||||
|
TLP504A(GB) |
|
PHOTOCOUPLER DUAL TRANS-OUT 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP504A(GB,F) |
Toshiba |
Transistor Output Optocouplers 55Vceo 2500Vrms standard |
Data Sheet |
|
|
||||||||||||
|
TLP504A-2 |
|
PHOTOCPLR QUAD TRANS-OUT 16-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
