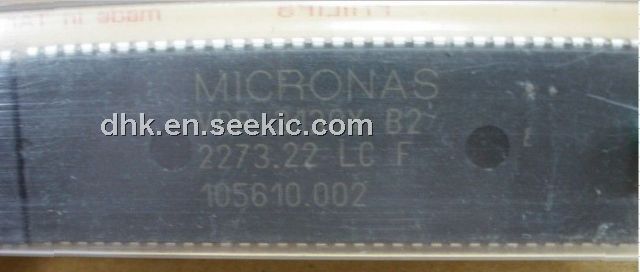

The VDP3130Y-B2 is a video IC family of high-quality single-chip video processor. The VDP3130Y-B2 is based on the VDP31xxB including YCRCB inputs for DVD component signals.
Parametrics
VDP3130Y-B2 absolute maximum ratings: (1) Junction Temperature Tj: 0 to 125°C; (2) Storage Temperature Ts: -40 to 125°C; (3) Total Power Dissipation Ptot: 1400mW; (4) Supply Voltage VSUPx: -0.3 to 6V; (5) Input Voltage, all Inputs VI: -0.3 to VSUPx +0.3V; (6) Output Voltage, all Outputs Vo: -0.3 to VSUPx +0.3V; (7) nput/Output Voltage, all Open Drain Outputs VIO: -0.3 to 6V; (8) Electrostatic Handling, HBM VES: -2000 to 2000V.
Features
VDP3130Y-B2 features: (1) four CVBS, one S-VHS input, one YCRCB component input; (2) Cintegrated high-quality A/D converters and assocated clamp and AGC circuits; (3) Cadaptive 2H comb filter Y/C separator; (4) multistandard color decoder PAL/NTSC/SECAM including all substandards; (5) Cmultistandard sync decoder; (6) Cautomatic standard recognition; (7) Csoft limiter (gamma correction) ; (8) Ccolor transient improvement.

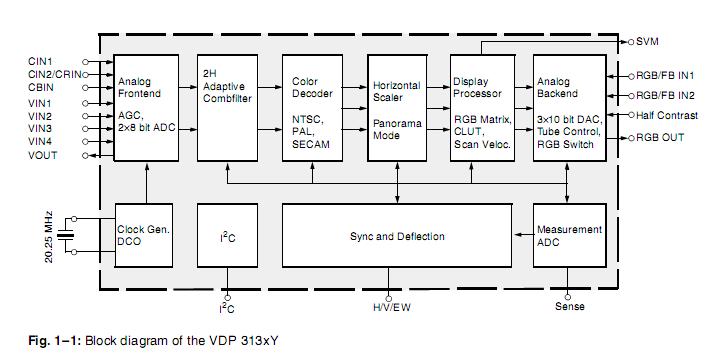

Diagrams
