Product Summary

ADUM1301ARW is a 3-channel digital isolator based on analog divice coupler technology. The ADUM1301ARW isolator provides three indepedent isolation channels in a variety of channel configurations and data rates. Applications of the ADUM1301ARW include: general-purpose multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transistor, industrial field bus isolation

Parametrics

ADUM1301ARW absolute maximum ratings: (1) storage temperature: -65 to +150°C; (2) Ambient operating temperature: -45 to +105°C; (3) supply voltages: -0.5 to +7.0V; (4) input voltage: -0.5 to VDDI +0.5V; (5) Output oltage: -0.5 to VDDO +0.5V; (6) average output current, per pin: -23 to +23mA; (7) Side 1: -23 to +23mA, side 2: -30 to +30mA; (8) Common-mode transients: -100 to +100kV/μs.

Features

ADUM1301ARW features: (1) low power operation; (2) biderctional communication; (3) high temperaturw operation: 105°C; (4) high common-mode transistent immunity: >25kV/μs; (5) saftey and regulatory approvals; (6) VDE certificate of conformity.

Diagrams

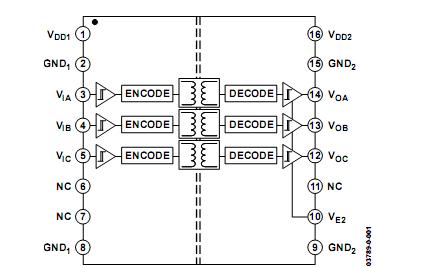

ADUM1301ARW Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADUM1301ARW
ADUM1301ARW


IC DIGITAL ISOLATOR 3CH 16-SOIC

Data Sheet

0-94: $2.28
ADUM1301ARW-RL
ADUM1301ARW-RL


IC DIGITAL ISOL 3-CH 16SOIC TR

Data Sheet

0-1000: $1.42
ADUM1301ARWZ
ADUM1301ARWZ


IC DIGITAL ISOLATOR 3CH 16-SOIC

Data Sheet

0-141: $1.78
ADUM1301ARWZ-RL
ADUM1301ARWZ-RL


IC DGITAL ISOLATOR 3CH 16-SOIC

Data Sheet

0-1: $2.50
1-10: $2.24
10-25: $2.02
25-100: $1.83
100-250: $1.66
250-500: $1.49
