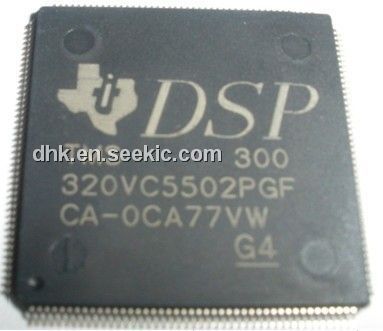

Product Summary
TMS320VC5502PGF300 is a digital singal processor. The TMS320VC5502PGF300 supports a variable byte width instruction set for improved code density. The TMS320VC5502PGF300 peripheral set includes an external memory interface (EMIF) that provides glueless access to asynchronous memories like EPROM and SRAM, as well as to high-speed, high-density memories such as synchronous DRAM and synchronous burst RAM.
Parametrics
TMS320VC5502PGF300 absolute maximum ratings: (1) Supply voltage I/O range, DVDD: -0.3V to 4.0V; (2) Supply voltage core range, CVDD: -0.3V to 2.0V; (3) Input voltage range, VI: -0.3V to 4.5V; (4) Output voltage range, V0: -0.3V to 4.5V; (5) Operating case temperature range, TC: -40 to 85°C; (6) Storage temperature range, Tstg: -55 to 150°C.
Features
TMS320VC5502PGF300 features: (1) High-Performance, Low-Power, Fixed-Point; (2) Instruction Cache (16K Bytes) ; (3) 8M×16-Bit Maximum Addressable External
Memory Space; (4) 32-Bit External Parallel Bus Memory Supporting External Memory Interface (EMIF) With General-Purpose Input/Output (GPIO) Capability and Glueless Interface; (5) Emulation/Debug Trace Capability Saves Last 16 Program Counter (PC) Discontinuities and Last 32 PC Values; (6) Programmable Low-Power Control of Six Device Functional Domains; (7) On-Chip Scan-Based Emulation Logic; (8) 3.3-V I/O Supply Voltage; (9) Four Timers; (10) 1.26-V Core Supply Voltage.

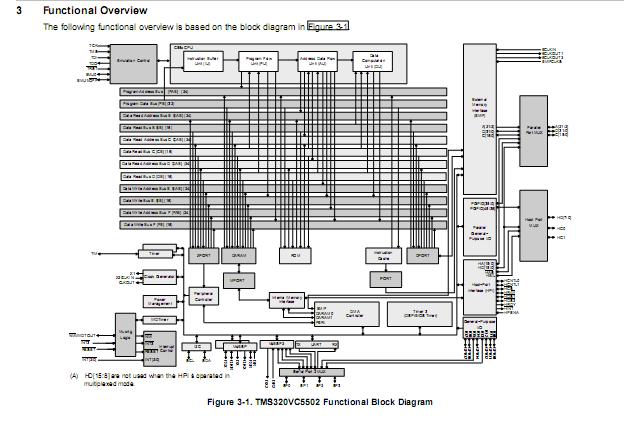

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMS320VC5502PGF300 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Processor |
Data Sheet |
|
|
|||||||||||||
