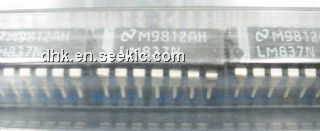

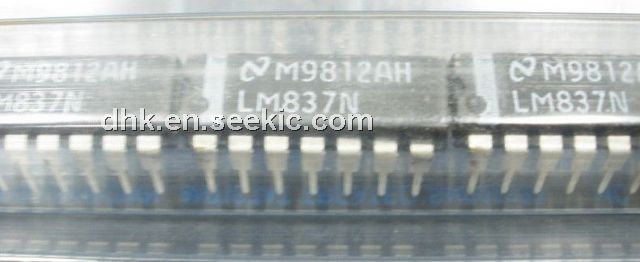

Product Summary
The LM837N is a quad operational amplifier designed for low noise, high speed and wide bandwidth performance. The LM837N has a new type of output stage which can drive a 600Ω load, making the ideal for almost all digital audio, graphic equalizer, preamplifiers, and professional audio applications. High performance characteristics also make the LM837N suitable for instrumentation applications where low noise is the key consideration.
Parametrics
LM837N absolute maximum ratings: (1) Supply voltage, VCC/VEE: ±18V; (2) Differential Input Voltage, VID: ±30V; (3) Common Mode Input Voltage, VIC: ±15V; (4) PowerDissipation, PD: 1.2W (N) , 830mW (M); (5) OperatingTemperatureRange, TOPR: -40 to +85°C; (6) Storage Temperature Range, Tstg: -60 to +150°C; (7) Soldering Information Dual-In-Line Package Soldering (10 seconds) : 260°C; (8) Small Outline Package Vapor Phase (60 seconds) : 215°C, Infrared (15 seconds) : 220°C.
Features
LM837N features: (1) High slew rate: 10V/μs (typ) ; 8V/μs (min) ; (2) Wide gain bandwidth product : 25MHz (typ) ; 15MHz (min) ; (3) Power bandwidth: 200kHz (typ) ; (4) High output current: ± 40mA; (5) Excellent output drive performance>600Ω; (6) Low input noise voltage: 4.5nV√Hz; (7) Low total harmonic distortion: 0.0015%; (7) Low offset voltage: 0.3mV.

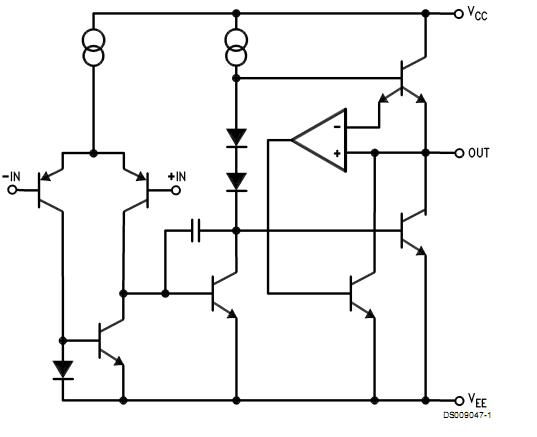

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LM837N/NOPB |
IC OP AMP QUAD LOW NOISE 14-DIP |
Data Sheet |
Negotiable |
|
||||||||||||||
