Product Summary
The M27C4002-10F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable) . The M27C4002-10F1 is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 words of 16 bits. The M27C4002-10F1 is offered in PDIP40, PLCC44 and TSOP40 (10x20mm) packages.
Parametrics
M27C4002-10F1 absolute maximum ratings: (1) Ambient Operating Temperature TA: -40 to 125°C; (2) Temperature Under Bias TBIAS: -50 to 125°C; (3) Storage Temperature TBIAS: -65 to 150°C; (4) Input or Output Voltage (except A9) : -2 to 7V; (5) Supply Voltage VCC: -2 to 7V; (6) A9 Voltage A9: -2 to 13.5V; (7) Program Supply Voltage VPP: -2 to 14V.
Features
M27C4002-10F1 features: (1) 5V±10% supply voltage in READ operation; (2) access time: 45ns; (3) lower power consumption; (4) programming voltage: 12.75V ± 0.25V; (5) programming time: 100μs/word; (6) electronic signature.

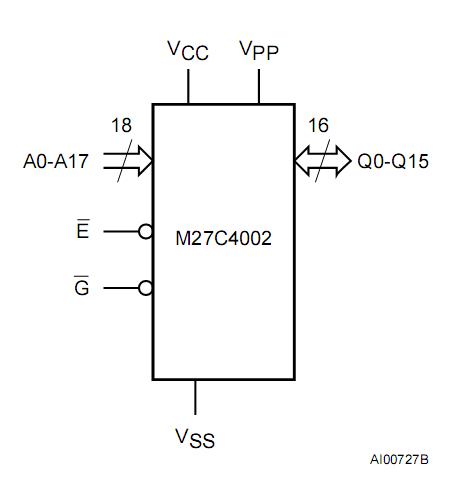

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C4002-10F1 |
STMicroelectronics |
EPROM 4M (256Kx16) 100ns |
Data Sheet |
Negotiable |
|
||||
