Product Summary

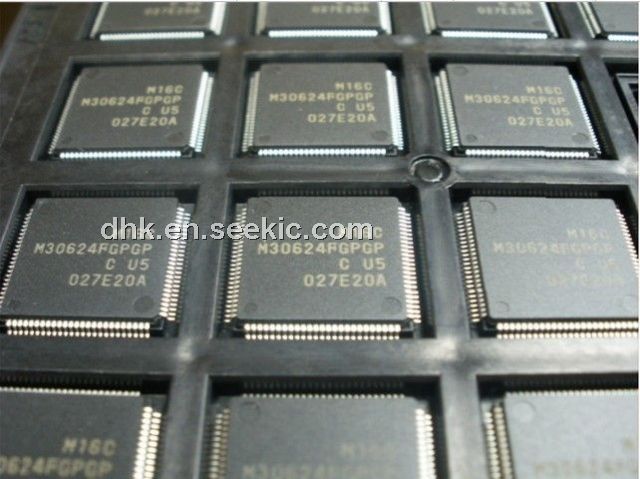

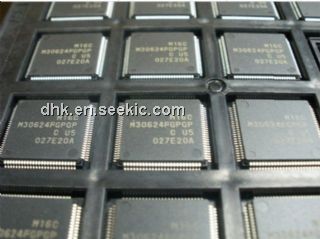

M30624FGPGP is a single-chip, 16-bit CMOS microcomputer. The M30624FGPGP operates using sophisticated instructions featuring a high level of instruction efficiency. Applications of the M30624FGPGP include: Audio, cameras, office/communications/portable/industrial equipment, automobile, etc,

Parametrics

M30624FGPGP absolute maximum ratings: (1) Supply voltage VCC1, VCC2: -0.3 to 6.5V ( VCC1=AVCC) ; (2) Supply Voltage VCC2: -0.3 to Vcc +0.1V; (3) Analog supply voltage AVCC: -0.3 to 6.5V (VCC1=AVCC) ; (4) Input voltage, VI: -0.3 to Vcc1 +0.3V, -0.3 to Vcc2 +0.3V; (5) Output voltage VO: -0.3 to Vcc1 +0.3V, -0.3 to Vcc2 +0.3V; (6) Power dissipation: 300mW (-40<Topr≤85°C) , 200mW (-40 <Topr≤125°C) ; (7) Operating ambien temperature Topr: -40 to 85°C/-40 to 125°C (When the microcomputer is operating) , 0 to 60°C (Flash program erase) ; (8) Storage temperature Tstg: -65 to 150°C.

Diagrams

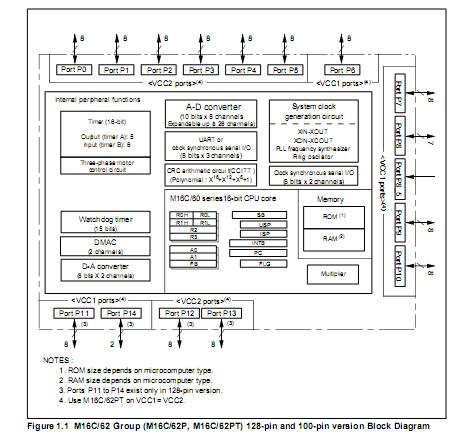

M30624FGPGP Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M30624FGPGP#D3C
M30624FGPGP#D3C


IC M16C MCU FLASH 256K 100-LQFP

Data Sheet

0-1: $12.59
M30624FGPGP#D5C
M30624FGPGP#D5C


IC M16C MCU FLASH 256K 100-LQFP

Data Sheet

0-1: $12.00
M30624FGPGP#U3C
M30624FGPGP#U3C


IC M16C MCU FLASH 256K 100LQFP

Data Sheet

0-1: $12.59
1-10: $11.64
10-100: $9.91
100-250: $9.13
250-500: $8.65
500-1000: $8.18
1000-2500: $7.93
2500-5000: $7.71
5000-10000: $7.55
M30624FGPGP#U5C
M30624FGPGP#U5C


IC M16C MCU FLASH 256K 100LQFP

Data Sheet

0-1: $12.00
1-10: $11.10
10-100: $9.45
100-250: $8.70
250-500: $8.25
500-1000: $7.80
1000-2500: $7.56
2500-5000: $7.35
5000-10000: $7.20
M30624FGPGP#D7C
M30624FGPGP#D7C

Renesas Technology America

MCU 3/5V 256K I-TEMP 100-LQFP

Data Sheet

Negotiable
M30624FGPGP#D9C
M30624FGPGP#D9C

Renesas Technology America

MCU 3/5V 256K 100-LQFP

Data Sheet

Negotiable
M30624FGPGP#U9C
M30624FGPGP#U9C


IC M16C MCU FLASH 256K 100LQFP

Data Sheet

0-1: $13.20
1-10: $12.21
10-100: $10.40
100-250: $9.57
250-500: $9.08
500-1000: $8.58
1000-2500: $8.32
2500-5000: $8.09
5000-10000: $7.92
M30624FGPGP#U7C
M30624FGPGP#U7C


IC M16C MCU FLASH 256K 100LQFP

Data Sheet

0-1: $13.85
1-10: $12.81
10-100: $10.91
100-250: $10.04
250-500: $9.52
500-1000: $9.00
1000-2500: $8.72
2500-5000: $8.48
5000-10000: $8.31
