Product Summary

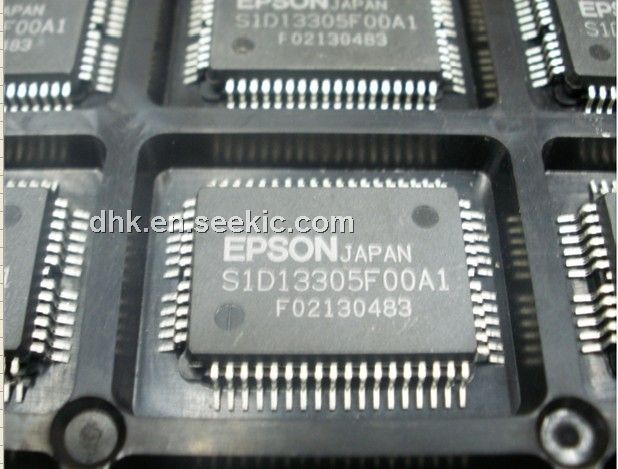

The S1D13305F00A is a controller IC that can display text and graphics on LCD panel. The S1D13305F00A can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. The S1D13305F00A stores text, character codes and bit-mapped graphics data in external frame buffer memory.
Parametrics
S1D13305F00A absolute maximum ratings: (1) Supply voltage range VDD: -0.3 to 7.0V; (2) Input voltage range VIN: -0.3 to VDD +0.3V; (3) Power Dissipation; (4) Operating temperature range Topg: -20 to 75°C; (5) Storage temperature range Tstg: -65 to 150°C; (6) Soldering temperature (10 seconds). Tsolder: 260°C.
Features
S1D13305F00A features: (1) Text, graphics and combined text/graphics display modes; (2) Three overlapping screens in graphics mode; (3) Up to 640 ? 256 pixel LCD panel display resolution; (4) Programmable cursor control; (5) Smooth horizontal and vertical scrolling of all or part of the display; (6) Up to 256, 8×16 pixel characters in external character generator ROM; (7) 6800 and 8080 family microprocessor interfaces; (8) Low power consumption°(TM)3.5 mA operating current DD = 3.5V), 0.05μA standby current.

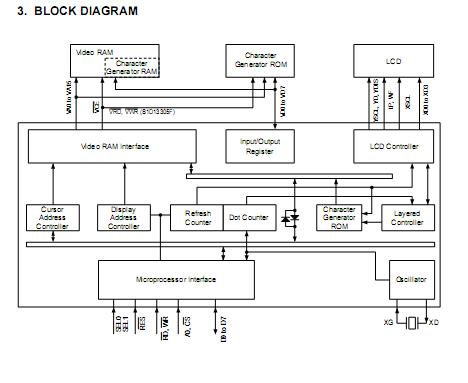

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S1D13305F00A1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S1D13305F00A2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
