Product Summary

The TAR5S40U is a silicon monolithic. TAR5S40U is comprised of general-purpose bipolar single-power-supply devices incorporating a control pin which can be used to turn them ON/OFF. Overtemperature and overcurrent protection circuits of the TAR5S40U are built in to the output circuit of devices.

Parametrics

TAR5S40U absolute maximum ratings: (1) Supply Voltage VIN: 15V; (2) Output Current IOUT: 200mA; (3) Power Dissipation PD: 450mW; (4) Operation Temp. Range Topr: -40 to 85°C; (5) Storage Temp. Range Tstg: -55 to 150°C.

Features

TAR5S40U features: (1) Low stand-by current; (2) Overtemperature/overcurrent protection; (3) Operation voltage range is wide; (4) Difference between input voltage and output voltage is low; (5) Small package. (UFV package: Similar to SOT-353) ; (6) Ceramic capacitors can be used.

Diagrams

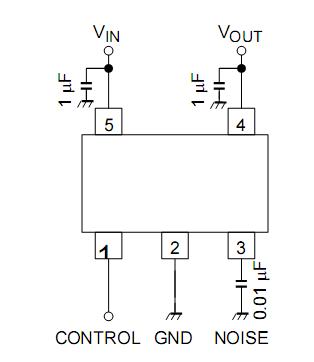

TAR5S40U Circuit
