Product Summary

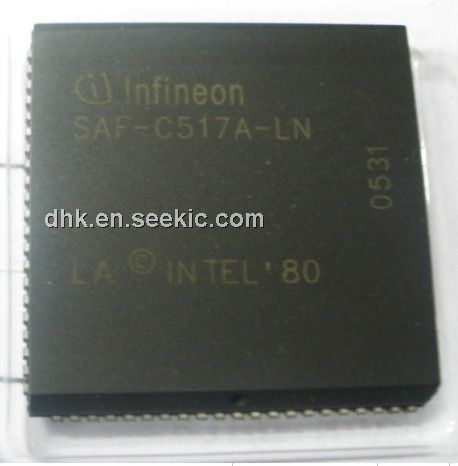

SAF-C517A-LN is an 8-bit CMOS microcontroller. The external operating frequency of the SAF-C517A-LN is up to 24MHz.

Parametrics

SAF-C517A-LN absolute maximum ratings: (1) Storage temperature Tstg: -65 to 150°C; (2) Voltage on VDD pins with respect to ground (Vss) , VDD: -0.5 to 6.5V; (3) Voltage on any pin with respect to ground (Vss) , VIN: -0.5 to VDD +0.5V; (4) Input current on any pin during overload condition: -10 to 10mA; (5) Absolute sum of all input currents during overload condition: | 100 | mA; (6) Power dissipation PDISS: TBDW.

Features

SAF-C517A-LN features: (1) Two full duplex serial interfaces (USART) ; (2) Four 16-bit timer/counters; (3) Powerful 16-bit compare/capture unt (CCU) with up to 21 high-speed or PWM output channels 5 capture inputs; (4) Extended watchdog facilities; (5) Power saving modes; (6) 17 interrupt sources (7 external,10 internal) selectable at 4 priority levels; (7) P-MQFP-100 and P-LCC-84 packages.

Diagrams

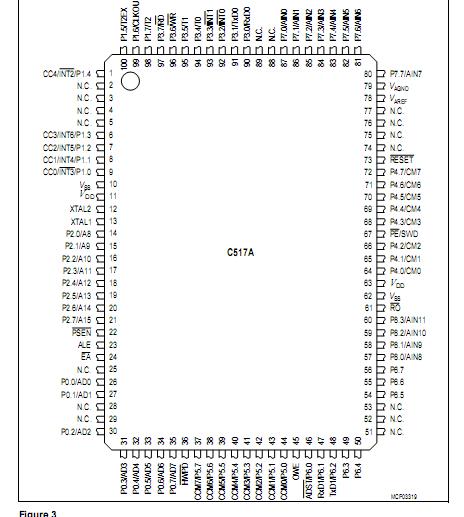

SAF-C517A-LN Circuit
