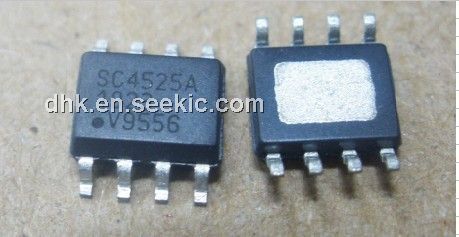

SC4525ASETRT

regulator, 32V, 3A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.32 / Piece
10 ~ 50 :	0.28 / Piece
50 ~ 100 :	0.25 / Piece

PartNumber:: SC4525ASETRT

Brand:: Semtech Corporation - Semtech | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 20000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: SC4525ASETRT Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Tina's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-19

From Other Seller

Part Number:SC4525ASETRT
US $0.25 - 0.32
Quantity:

piece

Product Summary

SC4525ASETRT is a constant frequency peak current-mode step-down switching regulator capable of producing 3A output current from an input ranging from 8V to 28V. The switching frequency of the SC4525ASETRT is programmable up to 2MHz, allowing the use of small inductors and ceramic capacitors for miniaturization, and high input/output conversion ratio. Applications of the SC4525ASETRT include: XDSL and Cable Modems, Set Top Boxes, Point of Load Applications, CPE Equipment, DSP Power Supplies and LCD and Plasma TVs.

Parametrics

SC4525ASETRT absolute maximum ratings: (1) Vin Supply Voltage: -0.3 to 32V; (2) BST Voltage: 42V; (3) BST Voltage above SW: 34V; (4) SS Voltage: -0.3 to 3V; (5) FB Voltage: -0.3 to Vin; (6) SW Voltage: -0.6V to VIN; (7) SW Transient Spikes (0ns Duration) : -2.5V to Vin +1.5V; (8) Peak IR Relow Temperature: 260°C; (9) ESD Protection Level: 2000V.

Features

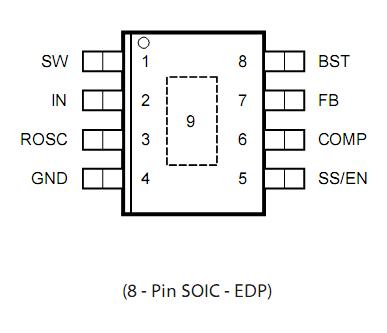

SC4525ASETRT features: (1) Wide input range: 8V to 28V; (2) 3A Output Current; (3) 200kHz to 2MHz Programmable Frequency; (4) Precision V Feedback Voltage; (5) Peak Current-Mode Control; (6) Cycle-by-Cycle Current Limiting; (7) Hiccup Overload Protection with Frequency Foldback; (8) Soft-Start and Enable; (8) Thermal Shutdown; (9) Thermally Enhanced 8-pin SOIC Package; (10) Fully RoHS and WEEE compliant.
