Product Summary

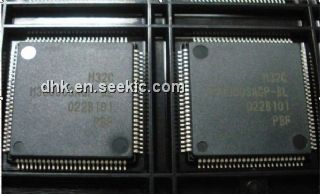

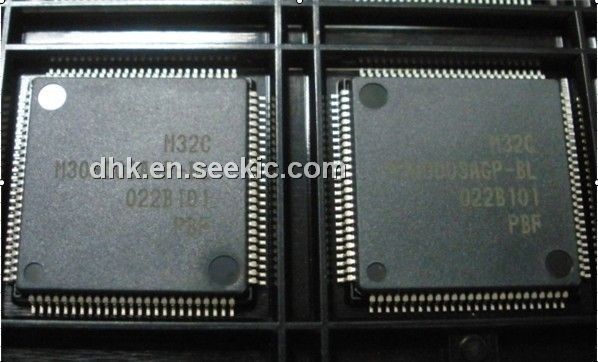

The M30800SAGP-BL-U5 is a single-chip control CMOS microcomputer that utilizes high-performance silicon gate CMOS technology with the M32C/80 series CPU core. The M30800SAGP-BL-U is available in 100-pin plastic molded LQFP/QFP package. The M30800SAGP-BL-U incorporates a multiplier and DMAC adequate for office automation, communication devices and industrial equipments and other high-speed processing applications. Applications of the M30800SAGP-BL-U include: Audio, cameras, office equipment, communications equipment, portable equipment, etc.

Parametrics

M30800SAGP-BL-U5 absolute maximum ratinfs: (1) Supply Voltage, Vcc1, Vcc2: -0.3V to 6.0V (Vcc1=AVcc) ; (2) Supply Voltage, Vcc2: -0.3 to Vcc1; (3) Analog Supply Voltage AVcc: -0.3V to 6.0V (Vcc1-AVcc) ; (4) Input Voltage VI: -0.3V to Vcc1 +0.3V; (5) Output Voltage Vo: -0.3V to +0.3V; (6) Power Dissipation Pd: 500mW (Topr=25°C) ; (7) Operating Ambient Temperature: -40 t0 85°C; (8) Storage Temperature Tstg: -65 to 150°C.

Diagrams

M30800SAGP-BL-U Block Diagramlt=
