Product Summary

The SPW20N60S5 is a cool MOS power transistor.

Parametrics

SPW20N60S5 absolute maximum ratings: (1) Continuous drain current ID: 20A (Tc=25°C) , 13A ( Tc=100°C) ,Pulsed drain current, tp limited by Tjmax, ID puls: 40mJ; (3) Avalanche energy, single pulse ID=10A, VDD=50V, EAS: 690mJ; (4) Avalanche energy, repetitive TAR limited by Tjmax IAR: 20A; (5) Gate source voltage VGS: ±20V; (6) Gate source voltage AC (f >1Hz) , VGS: ±30V; (7) Power dissipation, TC=25°C, Ptot: 208W; (8) Operating and storage temperature Tj, Tstg: -55 to +150°C.

Features

SPW20N60S5 features: (1) New revolutionary high voltage technology; (2) Ultra low gate charge; (3) Periodic avalanche rated; (4) Extreme dv/dt rated; (5) Ultra low effective capacitances; (6) Improved transconductance.

Diagrams

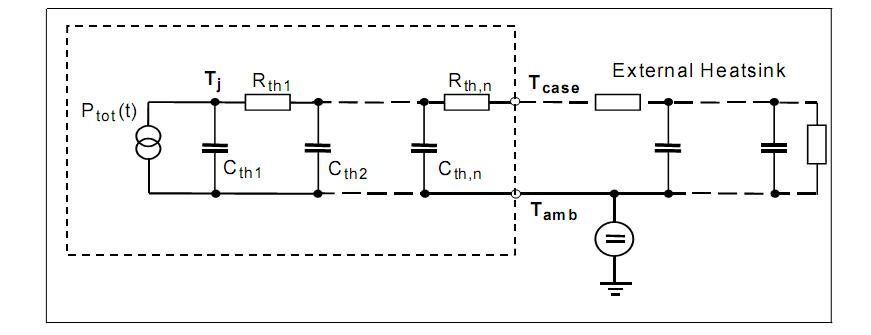

SPW20N60S5 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPW20N60S5
SPW20N60S5
Infineon Technologies
MOSFET COOL MOS N-CH 600V 20A
Data Sheet
0-1: $2.02
1-10: $1.96
10-100: $1.91
100-500: $1.81
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPW20N60C2
SPW20N60C2
Infineon Technologies
MOSFET N-CH 600V 20A TO-247
Data Sheet
Negotiable
SPW20N60C3
SPW20N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V 20.7A
Data Sheet
0-1: $2.86
1-10: $2.55
10-100: $2.09
100-250: $1.49
SPW20N60CFD
SPW20N60CFD
Infineon Technologies
MOSFET COOL MOS N-CH 650V 20.7A
Data Sheet
0-1: $3.29
1-10: $2.63
10-100: $2.40
100-250: $1.94
SPW20N60S5
SPW20N60S5
Infineon Technologies
MOSFET COOL MOS N-CH 600V 20A
Data Sheet
0-1: $2.02
1-10: $1.96
10-100: $1.91
100-500: $1.81
