Product Summary
The ISD17240SY is a high quality, fully integrated, single-chip multmessage voice record and playback device ideally suited to a variety of electronic systems. The ISD17240SY is designed for operation in either standalone or microcontroller (SPI) mode. The ISD17240SY incorporates a proprietary message management system that allows the chip to self-manage addresslocations for multiple messages.
Parametrics
ISD17240SY absolute maximum ratings: (1) Junction temperature: 150°C; (2) Storage temperature range: -65 to +150°C; (3) Voltage Applied to any pads: (Vss -0.3V) to (Vcc +0.3V) ; (4) Power supply voltage to ground potential: -0.3V to +7.0V; (5) Junction temperature: 150°C; (6) Voltage Applied to any pins: (Vss -0.3V to (Vcc +0.3V) ; (7) Voltage applied to any pin (Input current limited to +/-20mA) : (Vss -1.0V) to (Vcc +1.0V) .
Features
ISD17240SY features: (1) Integrated message management systems for single-chip, push-button applications; (2) REC: level-trigger for recording; (3) PLAY: edge-trigger for individual message or level-trigger for looping playback sequentially; (4) ERASE: edge-triggered erase for first or last message or level-triggered erase for all messages; (5) FWD: edge-trigger to advance to the next message or fast message scan during the playback; (6) VOL: 8 levels output volume control; (7) RDY/INT: ready or busy status indication; (8) Automatic power-down after each operation cycle.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

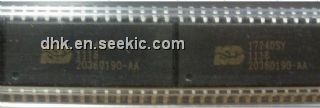

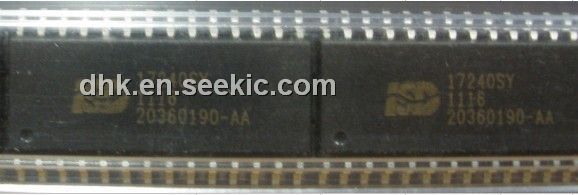

ISD17240SY |
IC VOICE REC/PLAY 240SEC 28-SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ISD17240SY01 |
IC VOICE REC/PLAY 240SEC 28-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
ISD17240SYI |
IC VOICE REC/PLAY 240SEC 28-SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ISD17240SYI01 |
IC VOICE REC/PLAY 240SEC 28-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
ISD17240SYIR |
IC VOICE REC/PLAY 240SEC 28-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
ISD17240SYR |
IC VOICE REC/PLAY 240SEC 28-SOIC |
Data Sheet |
Negotiable |
|
