Product Summary
The TSOP34138 is a miniaturized receiver for infrared remote control systems. The demodulated output signal of the TSOP34138 can be directly decoded by a microprocessor. The TSOP34138 is optimized to better suppress spurious pulses from energy saving fluorescent lamps but will also suppress some data signals. The TSOP34138 has not been qualified according to automotive specifications.
Parametrics
TSOP34138 absolute maximum ratings: (1) Supply voltage (pin 3) Vs: -0.3V to +6.0V; (2) Supply current (pin 3) IS: 3mA; (3) Output voltage (pin 1) VO: -0.3 to (Vs+ 0.3V) ; (4) Output voltage (pin 1) Vo: -0.3 to (Vs +0.3V) ; (5) Output current (pin 1) Io: 5mA; (6) Junction temperature Tj: 100°C; (7) Storage temperature range Tstg: -25 to +85°C; (8) Operating temperature range Tamb: -25 to +85°C; (9) Power consumption Ptot: 10mW (Tamb≤85°C) ; (10) Soldering temperature Tsd: 260°C (t≤10s, 1 mm from case) .
Features
TSOP34138 features: (1) Very low supply current; (2) Photo detector and preamplifier in one package; (3) Internal filter for PCM frequency; (4) Improved shielding against EMI; (5) Supply voltage: 2.5V to 5.5V; (6) Improved immunity against ambient light; (7) Insensitive to supply voltage ripple and noise; (8) Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

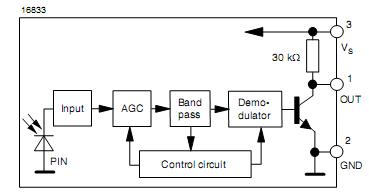

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TSOP34138 |
Vishay Semiconductors |
Infrared Receivers 2.7-5.5V 38kHz |
Data Sheet |
|
|
||||||||||||
